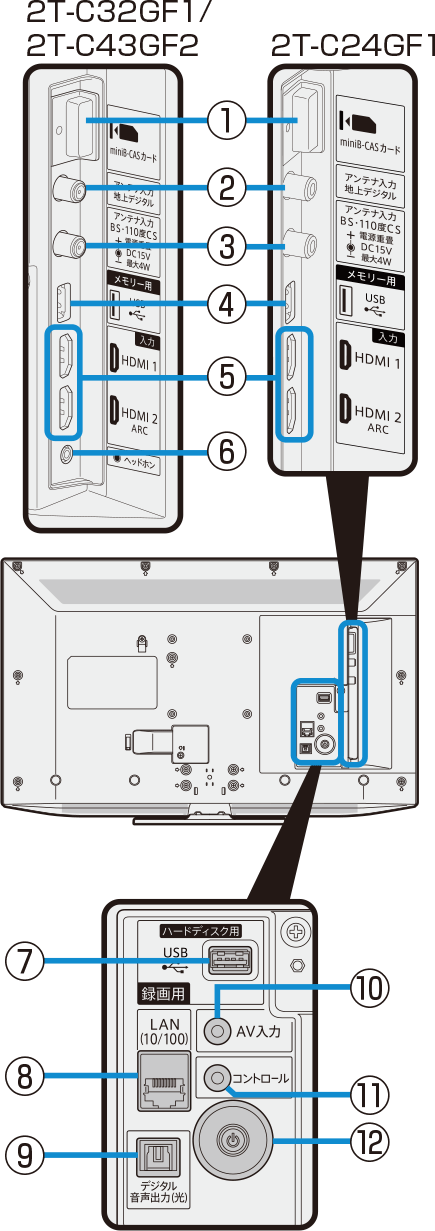

Part Name
①	miniB-CAS card slot
②	UHF antenna input terminal
③	BS·CS 110 antenna input terminal (HD)
④	USB terminal (For USB memory)
⑤	HDMI1・HDMI2 Connect a Blu-ray Disc player, AV amplifier, etc. ARC connects to HDMI2
⑥	Headphone / Analog audio output jack (2T-C32GF1/2T-C43GF2)
⑦	USB terminal (For USB-HDD recording)
⑧	LAN jack (10BASE-T/100BASE-TX)
⑨	Digital audio output jack (optical)
⑩	AV input Connect a video game equipment, video camera, etc. Please use conversion cable on the market.
⑪	Control jack It is a terminal for maintenance inspection. It is not normally used.
⑫	JOG-KEY

JOG-KEY	Functions Description
Single Press	On/Off (No OSD display)
Long Press (3sec more)	"Power off. Shut down?" display on TV screen
Move Up	Select channels/cursor ∧ button
Move Down	Input select/cursor ∨ button
Move Left	VOL UP/cursor ＜ button
Move Right	VOL DOWN/cursor ＞ button
